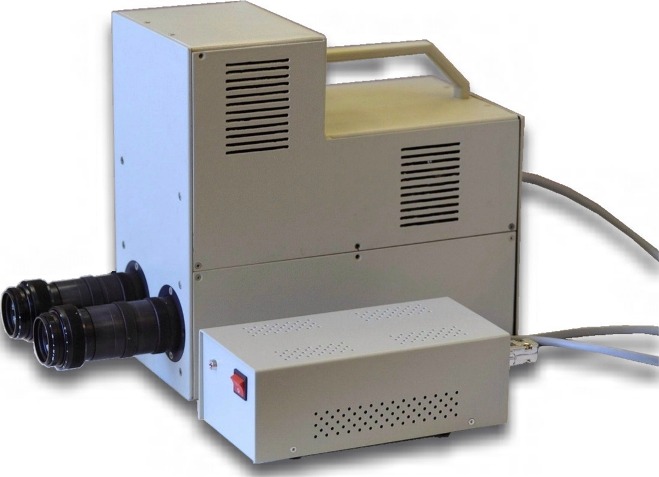

Portable high-precision spectrometer PVS-02 is designed for a high-precision transmission of units of spectral brightness from calibration system "Camellia-M" to the systems of photometric calibration in the range of 0.4-2.5 microns. PVS-02 can be used for registration of emission, reflection and absorption spectra of various objects.
Spectrometer consists of:
polychromator of visible range (PVR);
polychromator of infrared range (PIR);
two projection lenses;
micro-computer;
power supply unit (PSU);
special software (SS);
control computer (CC).
Brief specifications:
| Spectral range | 0,4÷2,5 microns |
|---|---|
| Spectral resolution in range | |
| 0,4-1,0 microns | not worse than 3 nm |
| 1,0-2,5 microns |
not worse than 3 nm |
| Ability of measuring absolute values of spectral brightness with a dynamic range of measured data |
> 16 bits |
| Supply voltage | 230±23 V |
| Power consumption | <30 W |
| Weight | 9.8 kg |
| Dimensions (without lens) |
328 × 176 × 324 mm³ |
